M1416R High-Speed Benchtop Refrigerated Centrifuge
| Brand | RWD |
| Cat. No. | M1416R |
| Application | Pelleting, Extractions, Purifications, Concentrations, Phase separations, Receptor binding, Rapid sedimentation of precipitates, particulates, and cell debris |
| Package | 1 set |
| Synonyms | Refrigerated microcentrifuge, Microcentrifuge, Centrifuge, 냉장원심분리기, 원심분리기 |
Features

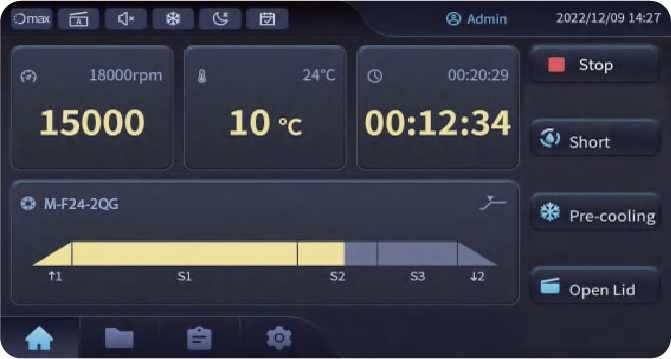

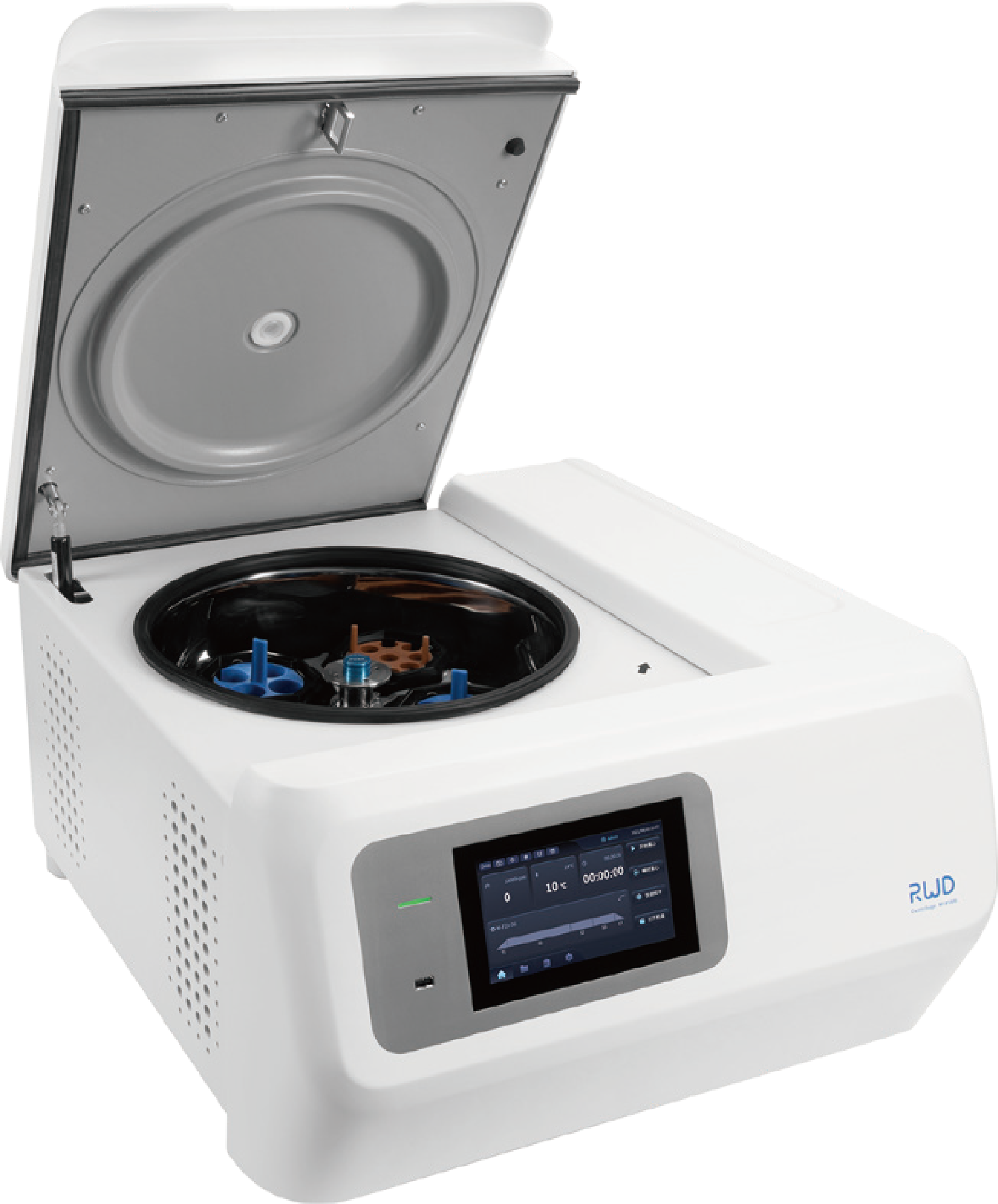

M1416R centrifuge is a refrigerated model with the speed up to 18,000 rpm (31,152×g), adapting various applications from micro to medium throughput. The capacity of M1416R ranges from 24 x 2mL to 4 x 400mL, and the plate rotor also accommodates PCR and deep-well plates. In addition, equipped with a 7-inch touch screen, M1416R provides visual operation and a personalized account management system ensuring efficient and quality control.
Abundant accessories

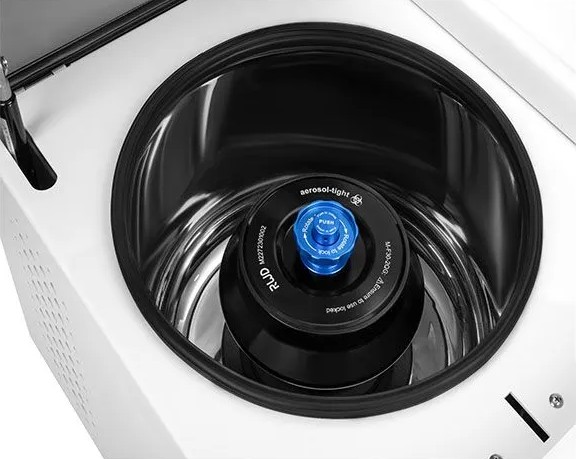

- Self-locking rotors enable non-tools required installation and removal and exchange in 3 seconds
- Multi-purpose device equips with various rotors and adaptors
Ergonomic operation

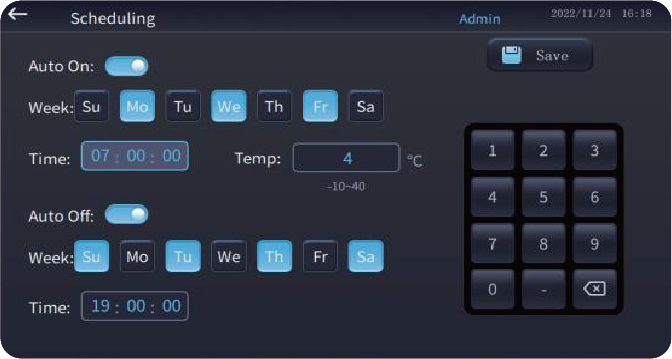

- Scheduling reservations provide the pre-cooling function for organized experiments
Various guarantees

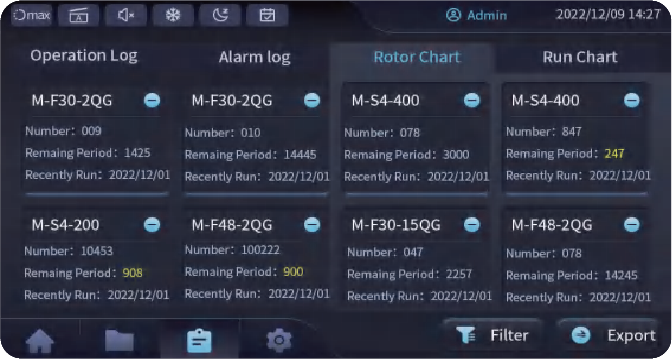

- Static rotor identification function for maximum operational safety
Multipurpose function
- More than 100 pre-program setting storage with customized steps achieve continuous centrifuge
Specifications
| Parameters | Description |
|---|---|
| Temperature range | -10℃ to +40℃ |
| Noise | 56dB(A) |
| Acceleration/Deceleration ramps | 9 /10 |
| Program Storage | 100 programs with the ability to do step programming |
| Dimension（W*H*D) | 620*670*400 mm |
| Weight without rotor | 96.5kg |

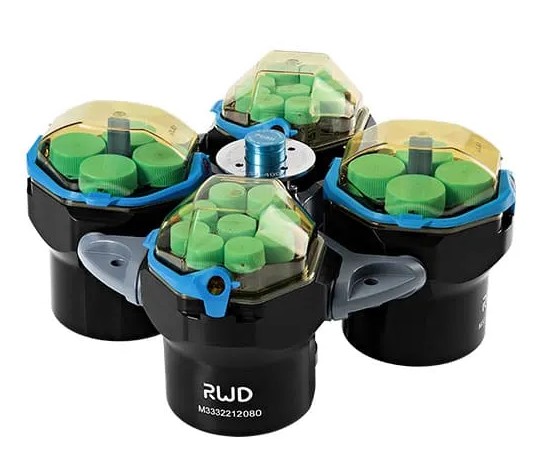

Rotor Information
| Model | Product Name | Maximum speed (rpm) | Maximum RCF (xg) |
|---|---|---|---|
| M-S4-400-CP | 4*400mL Swing-out rotor (incl. 4*M-A4-50 and 4*M-A9-15 adaptors) | 5000 | 4696 |
| M-S4-200-P | 4*180mL Swing-out rotor 4*180mL Swing-out rotor (incl. 4*M-A1-50 and 4*M-A5-15 adaptors) | 5500 | 5580 |
| M-S2-DWP-P | 2*3 Standard 96-well plate (2*1 DWP) | 4000 | 2272 |
| M-S2-400M | Multi-function rotor | 7,200 | 4,297 |

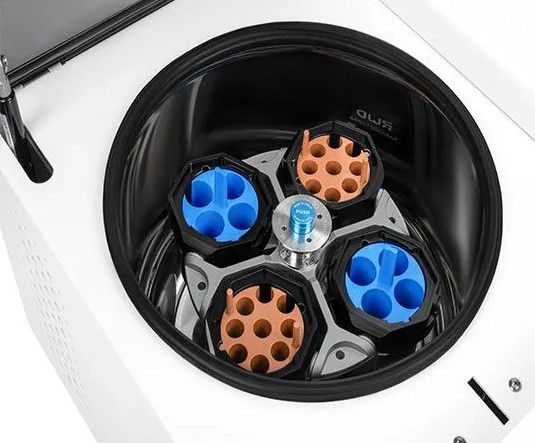

| M-S4-180WS | 4*180mL Swinging bucket rotor | 6,300 | 7,188 |
| M-F24-2QG | Aerosol-tight Lid , 24×2 mL tube quick- lock rotor | 18,000 | 30,000 |
| M-F30-2QG | Aerosol-tight Lid , 30×2 mL tube quick- lock rotor | 15,200 | 25,572 |
| M-F48-2QG | Aerosol-tight Lid , 48×2 mL tube quick- lock rotor | 15,200 | 25,314 |
| M-F18-5QG | Aerosol-tight Lid , 18×5 mL tube quick- lock rotor | 15,000 | 24,652 |
| M-F6-50QG | Aerosol-tight Lid , 6×50 mL tube quick- lock rotor | 12,100 | 20,133 |
| M-F6-100QG | Aerosol-tight Lid , 6×100 mL tube quick- lock rotor | 10,350 | 15,090 |
| M-F8-50CF | 8×50 mL tube carbon fiber rotor | 14,500 | 24,446 |
| M-F14-50CF | 14×50 mL tube carbon fiber rotor | 10,000 | 17,105 |
| M-F6-100CF | 6×100 mL tube carbon fiber rotor | 15,000 | 24652 |
| M-F30-15C | 30×15 mL tube clinic rotor | 5650 | 4997 |
Ordering Info
| Code No. | Product | Unit |
|---|---|---|
| M1416R | High-Speed Benchtop Refrigerated Centrifuge (Without Rotor) | 1 set |
| M-S4-400-CP | 4*400mL Swing-out rotor (incl. 4*M-A4-50 and 4*M-A9-15 adaptors) | 1 set |
| M-S4-200-P | 4*180mL Swing-out rotor 4*180mL Swing-out rotor (incl. 4*M-A1-50 and 4*M-A5-15 adaptors) | 1 set |
| M-S2-DWP-P | 2*3 Standard 96-well plate (2*1 DWP) | 1 set |
| M-S2-400M | Multi-function rotor | 1 set |
| M-S4-180WS | 4*180mL Swinging bucket rotor | 1 set |
| M-F24-2QG | Aerosol-tight Lid , 24×2 mL tube quick- lock rotor | 1 set |
| M-F30-2QG | Aerosol-tight Lid , 30×2 mL tube quick- lock rotor | 1 set |
| M-F48-2QG | Aerosol-tight Lid , 48×2 mL tube quick- lock rotor | 1 set |
| M-F18-5QG | Aerosol-tight Lid , 18×5 mL tube quick- lock rotor | 1 set |
| M-F6-50QG | Aerosol-tight Lid , 6×50 mL tube quick- lock rotor | 1 set |
| M-F6-100QG | Aerosol-tight Lid , 6×100 mL tube quick- lock rotor | 1 set |
| M-F8-50CF | 8×50 mL tube carbon fiber rotor | 1 set |
| M-F14-50CF | 14×50 mL tube carbon fiber rotor | 1 set |
| M-F6-100CF | 6×100 mL tube carbon fiber rotor | 1 set |
| M-F30-15C | 30×15 mL tube clinic rotor | 1 set |
