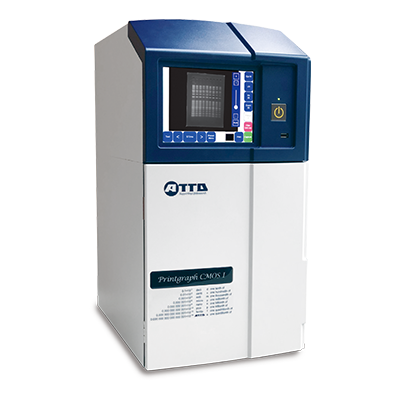

GEL DOCUMENTATION SYSTEM
WSE-5300 Printgraph CMOS I
2305305 / 2305302 / 2305310
- UV light source: 312nm for EtBr, SYBR Green/Safe stained gel, etc.
- White Flat LED: CBB stained gel, Silver stained gel, etc.
- CyanRed Epi: UV free! detecting much higher resolution fluorescence than Blue LED.
- Direct Print out: Connect with High quality digital graphic printer (SONY UP-D898MD)
- Save an image in the main unit, direct to USB memory and send Tablet (WiFi Control), etc.
Description
- 6 Megapixels high-resolution CMOS camera Gel Documentation System
- Quick response touch panel system
- UV free for Hazard free from an experiment (optional)
WSE-5300 Printgraph CMOS I is a detectable high-resolution image.
Quick response touch panel system
WSE-5300 Printgraph CMOS I is a quick response by a high-quality touch panel system.
UV free for Hazard free from experiment
ATTO original “CyanRed Epi” applied (optional). 510nm of Cyan excitation can detect EtBr (UV free)
Also, ATTO EzFluoroStainDNA which is highly sensitive fluorescence stain reagent instead of EtBr. (EtBr free
Specification
| Description | |
|---|---|
| Camera | High resolution monochrome CMOS |
| Resolution | High: 2927 x 2054, Standard: 1463 x 1027 |
| File format | 16bit TIFF / 8 bit TIFF / BMP / JPEG |
| Lens | x6 Auto zoom lens (Iris, Zoom, Focus) |
| Monitor | 8 inch Touch LCD Panel |
| Filter | 6 position, 595nm filter as standard (EtBr, EzFluoroStainDNA, SYBR Dye etc.) |
| Camera view area | 45 (W) x 30 (D) mm ~ 260 (W) x 180 (D) mm |
| Exposure time | 5msec ~ 10 sec |
| White Flat LED | standard |
| UV light | 312nm, Sample size: 200 (W) x 200 (D) mm for WSE-5300UV, WSE-5300F, WSE-5300A |
| CyanRed Epi | Cyan: 510 nm, Red: 623 nm for WSE-5300CR, WSE-5300A |
| Printer | SONY UP-D898MD (optional) |
| WiFi LAN | IEEE802.11b/g/n |
| Interface | USB 3 port / LAN 1 port |
| Size | 305 (W) x 620 (H) x 450 (D) mm |
| Weight | 28 kg |
| Power | AC100-240 V |
