| Brand | Neo Science |
| Cat. No. | NL21 |
| Application | Small animal imaging, plant luminescence imaging, tumorization, cell tracking, gene expression |
| Package | 1 set |
| Synonyms | in vivo imaging, luminescence imaging, bioluminescence imaging, small animal imaging, plant imaging, EMCCD imaging system, personal in vivo imaging system, 인비보이미징, 발광 인비보 |
Features

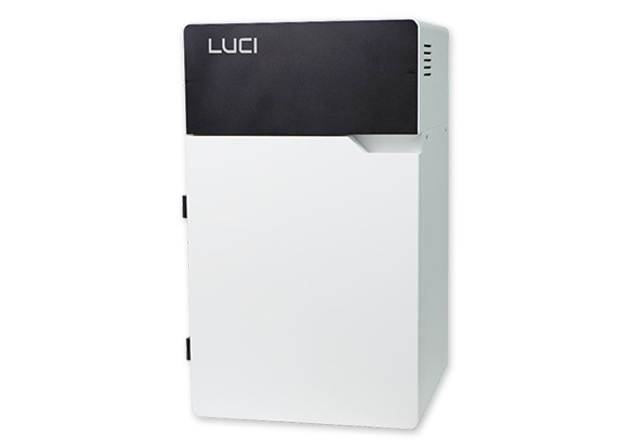

Luminescence In Vivo Imaging System
LUCI는 조직, 동물, 식물 sample에서 발생하는 luminescence signal을 촬영하고 분석할 수 있는 compact in vivo imaging system입니다.
고감도 EMCCD sensor와 -80℃ cooling을 적용하여 약한 bioluminescence signal도 검출할 수 있으며, small animal의 tumorization, cell tracking, gene expression 연구 뿐 아니라 plant luminescence imaging에도 사용할 수 있습니다.
기존의 대형 in vivo imaging system 도입이 부담스러웠던 연구실에서도 사용할 수 있도록, 필요한 기능에 집중한 personal imaging system입니다.

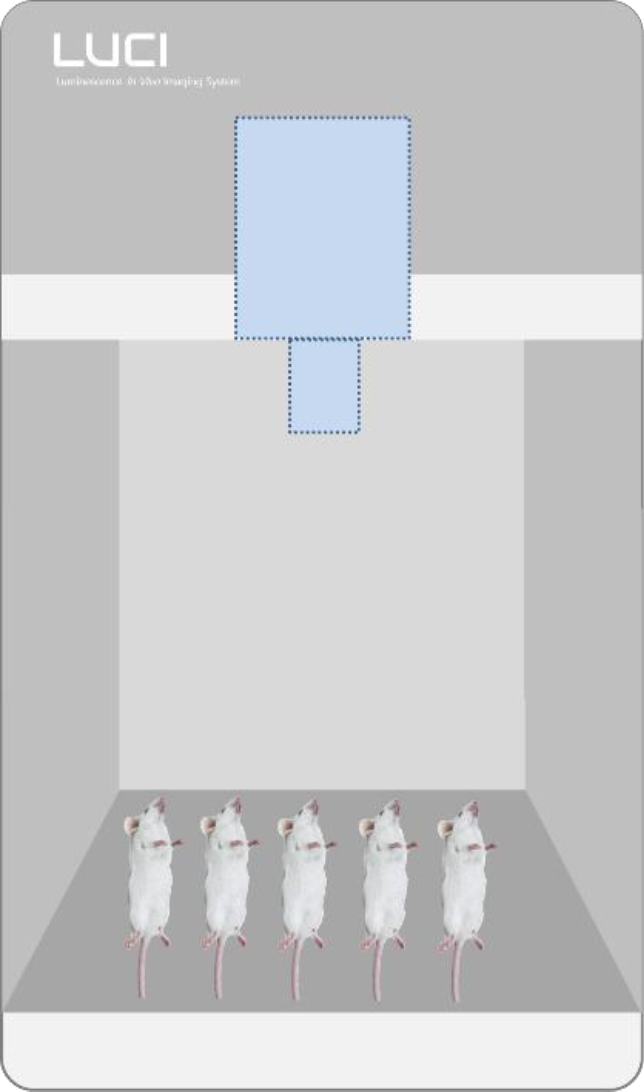

Compact Personal Imaging System
300×300×510 mm의 compact size로, 별도의 대형 장비 공간 없이 실험실 내에서 운용하기 좋습니다.
대형 in vivo imaging 장비가 부담스러운 연구실에서도 small animal 및 plant luminescence imaging을 시작할 수 있는 compact system입니다.
Easy to Use
Camera와 LED light는 imaging program에서 제어할 수 있으며, live window, exposure time/gain 조정, capture, quantitation, image merge 기능을 제공합니다.
설치와 사용이 간단하고, compact size로 이동과 관리가 쉬운 구조입니다.

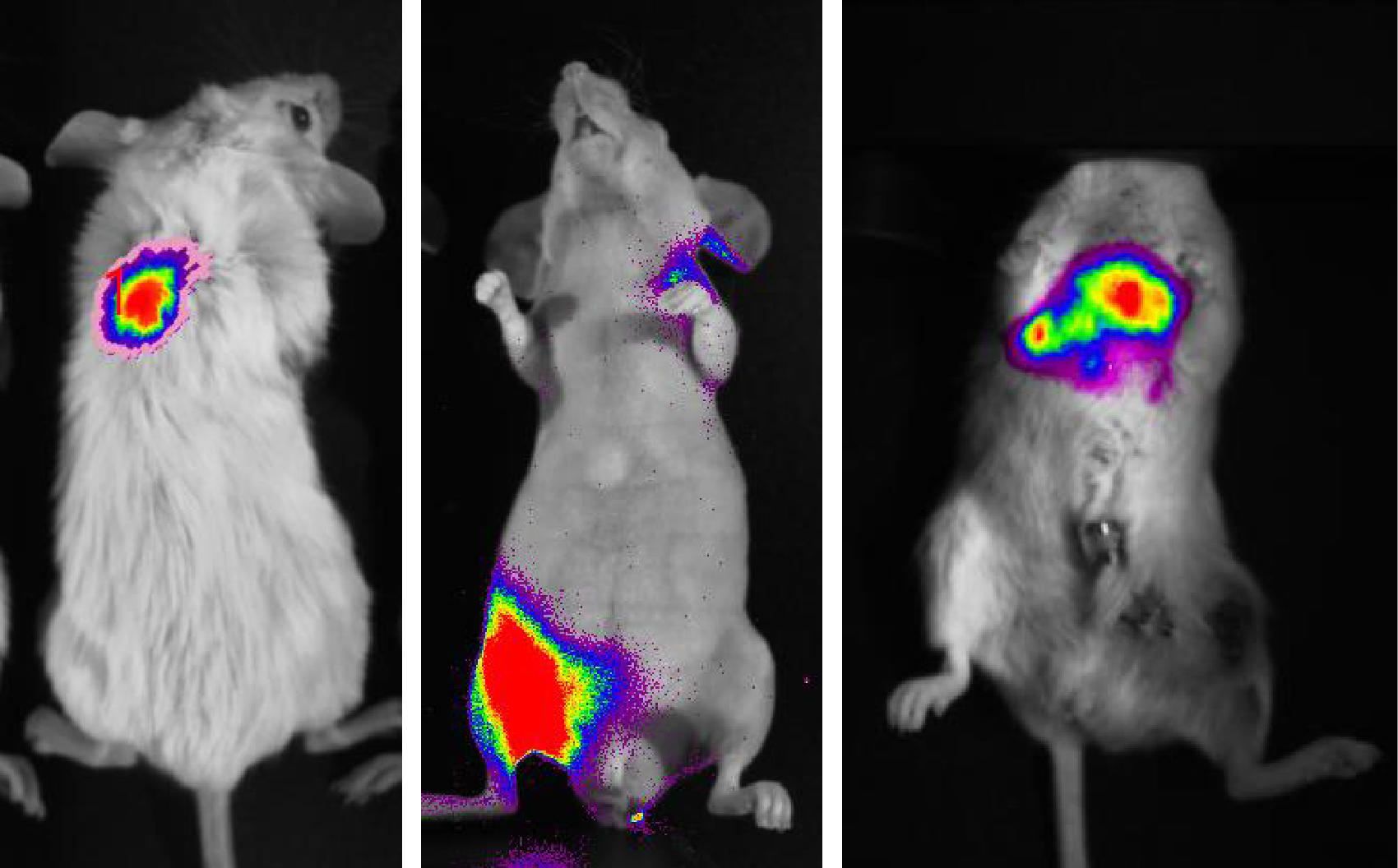

Small Animal Imaging
LUCI는 mouse를 이용한 tumorization experiment, cell tracking, gene expression analysis 등에 사용할 수 있습니다.

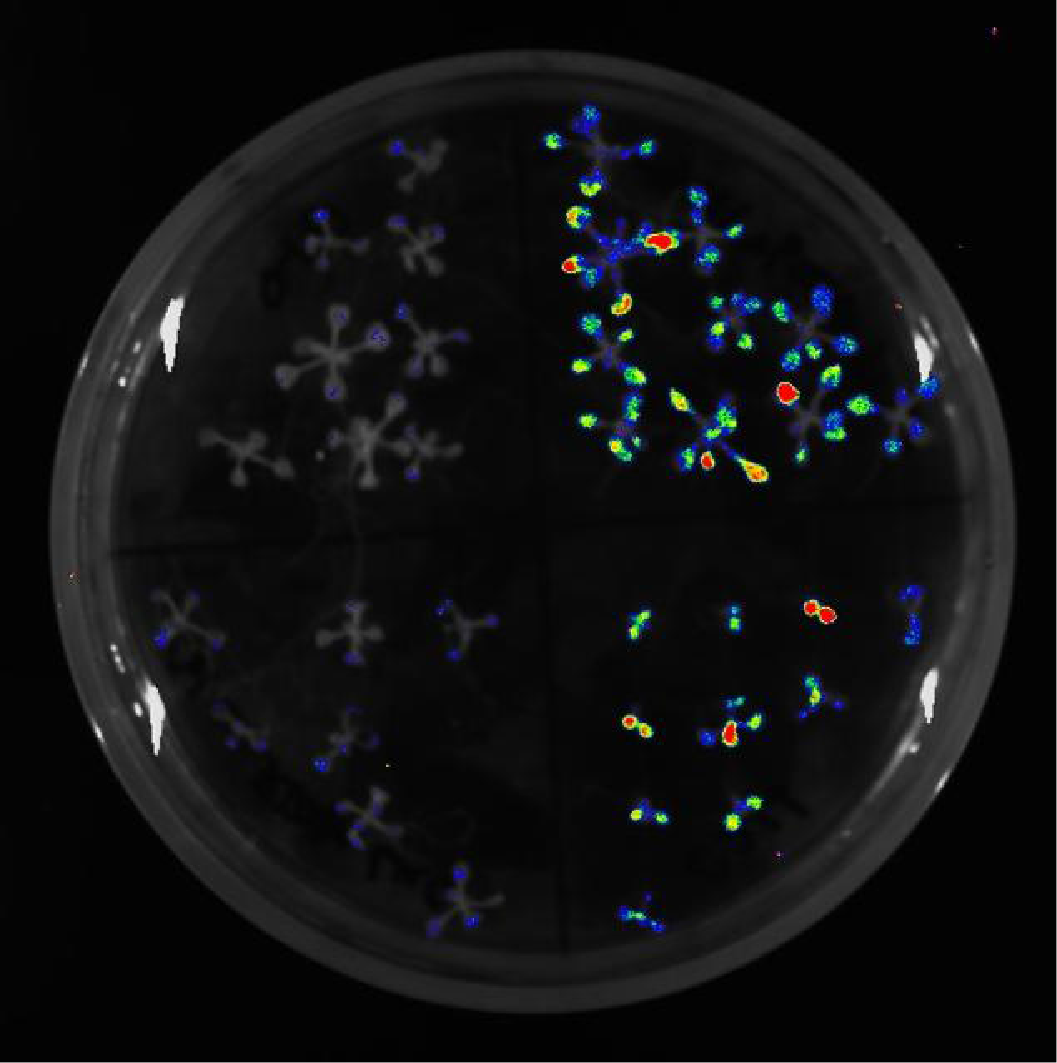

Plant Luminescence Imaging
LUCI는 small animal 뿐 아니라 Arabidopsis와 같은 plant sample의 luminescence imaging에도 사용할 수 있습니다.
Specifications
| LUCI (Luminescence In Vivo Imaging System) | |
|---|---|
| Image Sensor | EMCCD sensor |
| Resolution | 1024 × 724 |
| Frame rate | Up to 26 fps |
| Quantum Efficiency | 95% max |
| Cooling | -80℃ |
| Pixel Size | 13 × 13 μm |
| Digital Output | 16-bit |
| Aperture | Physical |
| Interface Connector | USB 3.0 |
| Stage Heating | Yes |
| Capacity (Mouse) | 5 |
| Field of View | 235 × 180 mm |
| Weight | 23 kg |
| Size (W × D × H) | 300 × 300 × 510 mm |
Ordering Info
| Code No. | Product | Unit |
|---|---|---|
| NL21 | LUCI Luminescence In Vivo Imaging System | 1 set |
| NL23 | LUCIm Luminescence In Vivo Imaging System | 1 set |
