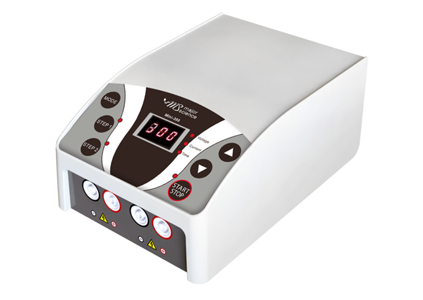

Mini Pro 300V Power Supply
| Brand | major science |
| Cat. No. | MINI-300 |
| Application | Electrophoresis power supply for agarose gel and SDS-PAGE |
| Package | 1 set |
| Synonyms | Electrophoresis power supply, SDS-PAGE power supply, agarose gel power supply, mini power supply, 전원공급장치, 파워서플라이, SDS-PAGE 전원공급장치, 아가로스 겔 전기영동 전원공급장치, 전기영동 전원공급장치, DNA gel 전원공급장치 |
Features
Applications
- Agarose gel electrophoresis (DNA/RNA)
- SDS-PAGE (protein electrophoresis)
- Western blot transfer
- 일반 연구 및 교육용 electrophoresis
Why Mini Pro 300V?
✔ 다양한 electrophoresis에 대응
DNA agarose gel부터 protein SDS-PAGE까지 하나로 해결
✔ 2-step 프로그램 기능
Stacking → Separation 단계 자동 전환 가능
(예시) 80V, 20 min → 150 V, 40 min
✔ 2 gel 동시 운용
시간 절약 + 실험 효율 증가
✔ 정밀 제어 (1V / 1mA)
재현성 높은 실험 조건 설정 가능
소형 사이즈와 2-step 프로그램 기능을 갖춘 다목적 전기영동용 Power supply
Mini Pro 300V Power Supply는 소형 설계와 높은 활용도를 갖춘 전기영동용 전원 공급 장치로,
polyacrylamide gel (SDS-PAGE) 및 agarose gel electrophoresis 모두에 적합합니다.
1V / 1mA 단위의 정밀 제어가 가능하며, constant voltage 또는 constant current 모드를 지원하여
다양한 실험 조건에 유연하게 대응할 수 있습니다.
또한 2-step programmable 기능을 통해 protein electrophoresis에 최적화된 조건 설정이 가능하며,
2개의 전극 출력으로 동시에 2개의 gel을 구동할 수 있어 실험 효율을 높입니다.
- Constant voltage / constant current 모드 지원
- 1V, 1mA 단위 정밀 제어
- 최대 300V / 400mA / 60W 출력
- 2개의 출력 단자
- Timer 기능 (알람 포함)
- 2-step programmable control
- Compact & lightweight 디자인
- 안전 설계 (No-load detection 등)
- Agarose / SDS-PAGE 모두 적용 가능
- 교육용 및 일반 실험실 환경에 적합
Power supply Specifications 비교표
실험 조건에 따라 적합한 모델을 아래 표에서 확인하세요.
◎ : Recommended
○ : Suitable
△ : Conditional
× : Not recommended
Specifications
| Mini Pro 300V Power Supply | |
|---|---|
| Output Voltage / Inc | Step1: 10 - 300V / 1V |
| Step2: 10 - 300V / 1V | |
| Output Current / Inc | Step1: 10 - 400mA / 1mA |
| Step2: 10 - 400mA / 1mA | |
| Max. Power | 60W |
| Output Type | Constant voltage or constant current |
| Control | Microprocessor controller |
| Terminal Pairs | 2 pairs |
| Timer | 999 min (alarm) / Continuous (set=0) |
| Safety Device | No-load detection; shrouded plugs and sockets |
| Operation Temp. | 4°C - 40°C |
| Dimension | 140 × 191 × 84 mm |
| Material | Polycarbonate housing + aluminum base |
| Weight | approx. 1 kg |
| Rated Voltage | 100 - 240V, 50 - 60Hz |
| Program | 2-step program |
| Preset Value | Step1: 300V / 16mA / 15 min |
| Step2: 300V / 24mA / 120 min |
Ordering Info
| Code No. | Product | Unit |
|---|---|---|
| MINI-300 | Mini Pro 300V Power Supply | 1 set |
